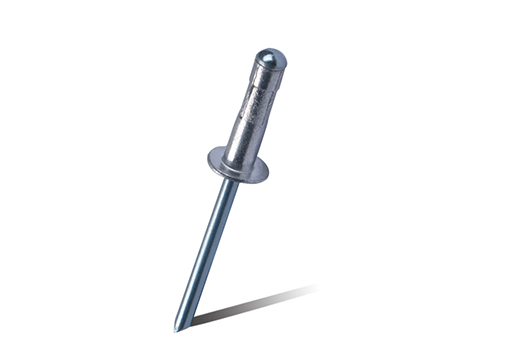

Aluminium / ferro Dome capite caecus rivets

Materia

Corpus: Aluminium

Mandrel, ferro

Consumo

Corpus Polito

Mandrel: Zinc Plated

Details

Appliationis

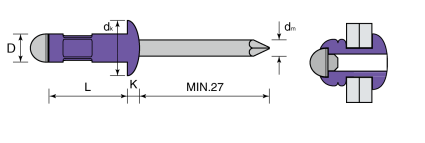

D		L		dk	k	dm
Rivet magnitudine	Pars numerus	Longitudo Rivet	Tenaci range	Caput dia	Caput altitudinis	Mandrel Dia	Software Size (EXERCITATIO)	Tondendas (n)	Tensile (n)
	Pars numerus	Longitudo Rivet	Tenaci range	Caput dia	Caput altitudinis	Mandrel Dia	Software Size (EXERCITATIO)	Tondendas (n)	Tensile (n)
		[I / -0]	Min-max		Max.	Max.	Ф	Min.	Min.
3,2 0,08 -0.15	Asng3206	6.0	1.0-3.5	5.8-6.7	1.3	2.00	3.3-3.4	650	850
	Asng3208	8.0	1.5-5.0
	ASNG3210	10.0	2.5-7.0
	ASNG3212	12.0	4.5-9.0
	Asng3214	14.0	6.5-10.5
	ASNG3216	16.0	9.0-12.5
4.0 0.08 -0.15	Asng4006	6.0	1.0-3.0	6.9-8.4	1.7	2.50	4.1-4.2	950	1500
	Asnng4008	8.0	1.5-5.0
	Asng4010	10.0	2.0-6.5
	Asng4012	12.0	3.5-8.5
	Asng4014	14.0	5.5-10.5
	Asng4016	16.0	6.0-12.5
	Asng4018	18.0	9.5-14.5
	Asng4020	20.0	11.5-16.5
4.8 0,08 -0.15	ASNG4810	10.0	1.5-6.0	8.3-10.1	2.0	3.00	4.9-5.0	1320	2000
	ASNG4812	12.0	2.0-8.0
	Asng4814	14.0	3.5-9.5
	ASNG4816	16.0	6.0-11.5
	ASNG4818	18.0	8.0-13.5
	Asng4820	20.0	10.0-15.5
	Asng4822	22.0	12.0-17.5
	ASNG4824	24.0	12.0-19.0
	Asng4827	27.0	17.0-22.0
	ASNG4830	30.0	20.0-25.0

Stabilis-ind

Stabilis-ind - persequi qualitas et projiciamus summus qualitas bona.

Firmus officinarum super a millia diversis genera caecorum Rivet nucis in ferro, aluminium et immaculatam ferro, filum ex M3-M16 in metrica et UNC # 6-32 ad I / 2-13 in inch. In alta in immaculatam ferro caecus rivets et aperta et signati type, Mutrigrip, Monobolt et alia structural Rivets. Nos focus in "unum subsisto shopping" et cum commodum magnam productio facultatem, consistent qualis, competitive prices, punctualis partus et bona Serripiis ante et post Sales, stabilis et in unum de ducit et post venditionesque Fasteners & in asia.

De nobis Stabilis-ind

Honos

A professional manufacturer de caeca fasteners.

Stainy officinarum in millibus diversis genus caecorum Rivet nuces in ferro, aluminium et immaculatam ferro, diameter a M1-M16 in metrica et UNC # 6-32 ad UNC I / 2-13 in inch. In alta in immaculatam ferro caecus rivets et aperta et signati type, Mutrigrip, Monobolt et alia structural Rivets. Nos focus in "unum subsisto shopping" et cum commodum magna productio facultatem, consistent qualis, competitive prices, punctualis partus et excellens et in unum de ducens caeci Fasteners manufacuture est in Asia.

Omnis uber Contact Us
