Css / csos

Consumo	Coduft
Zinc caeruleum	Zu
Zinc nigrum	ZB
Zinc Yellow	Zc
Cadmiae	ZI
Niger anodize	BL
Anodize	Na
Anodize	GD
CIRCULUS	RU
Aeris flavo	Yu
Nickel in aeris	Cn
TiNT	Dt
Flash nigrum pingis coating	PC
Sn / PB plating	Tp
Sandblast et anodize	Sa
Mico nickel	Ni
Nickel electreless	En
Chrome Flash	Credo
Stagni mico	Et
POSTIVATIO	PS
Aurum Plantis	Au
Silver	AG
Titanium plating	TI
Cadmium plating	CILIS
Zinc-ferrum stoney	Zf
Chromate	Ch
Planus	X
Pictura Electro	EF

Details

Appliationis

Omnes dimensiones in pollices (mole unit: inch)

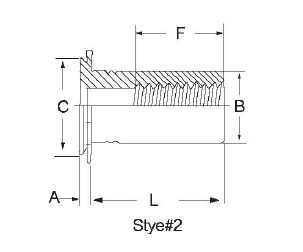

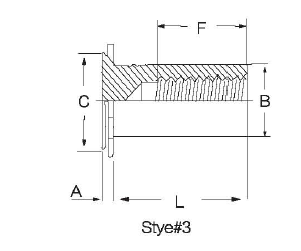

Thread Size	Genus	Thread Code	Longitudo "l" .002-.005 (Longitudo codice in 16ths in inch)								Min.sheet crassitudine	Caecus adscendens foraminis dia .003 -.000	Min. Profundum caecus foraminis (IV)	Min. Profundum plena filum f	A Max.	B max. (V)	C Max.	H Nom.	Min.Dist foraminis C / L in ore gladii
	Immaculatam ferro		.187	.250	.312	.375	.500	.625	.750	.100
.112-40 (# 4-40)	Css	440	III (I)	IV (II)	V (II)	VI (II)	VIII (III)	X (III)	XII (III)	XVI (III)	.062	.213	.043	.188	.041	.165	.212	.250	.188
	Csos										.093		.075		.072
.138-32 (# 6-32)	Css	632	III (I)	IV (I)	V (II)	VI (II)	VIII (III)	X (III)	XII (III)	XVI (III)	.062	.290	.043	.250	.041	.213	.289	.312	.219
	Csos										.093		.075		.072
.164-32 (8-32)	Css	832	III (I)	IV (I)	V (II)	VI (II)	VIII (III)	X (III)	XII (III)	XVI (III)	.062	.312	.043	.250	.041	.245	.311	.344	.250
	Csos										.093		.075		.072
.190-32 (# 10-32)	Css	032	III (I)	IV (I)	V (I)	VI (I)	VIII (II)	X (III)	XII (III)	XVI (III)	.062	.344	.043	.375	.041	.290	.343	.375	.281
	Csos										.093		.075		.072
.250-20 (I / 4-20)	Css	0420	III (I)	IV (I)	V (I)	VI (I)	VIII (II)	X (II)	XII (III)	XVI (III)	.062	.390	.043	.375	.041	.354	.389	.438	.375
	Csos										.093		.075		.072

Omnes dimensiones sunt in MmMimets (Size Unit: mm)

Thread Size	Genus	Thread Code	Longitudo Code "l" .0.05-0.13 (Longitudo codice est in mm)								Min.sheet crassitudine	Caecus adscendens foraminis dia 0.08	Min. Profundum caecus foraminis (IV)	Min. Profundum plena filum f	A Max.	B max. (V)	C Max.	H Nom.	Min.Dist foraminis C / L in ore gladii
	Immaculatam ferro
M3x0.5	Css	M3	IV (I)	VI (I)	VIII (II)	X (III)	XII (III)	XVI (III)	XX (III)	XXV (III)	1.6	5.41	1.1	5	1.04	4.2	5.39	6.35	4.8
	Csos				VIII (III)						2.4		1.91		1.83
M4x0.7	Css	M4	IV (I)	VI (I)	VIII (II)	X (II)	XII (III)	XVI (III)	XX (III)	XXV (III)	1.6	7.92	1.1	6.5	1.04	6.23	7.9	8.74	6.4
	Csos					X (III)					2.4		1.91		1.83
M5x0.8	Css	M5	IV (I)	VI (I)	VIII (I)	X (II)	XII (II)	XVI (III)	XX (III)	XXV (III)	1.6	8.74	1.1	9.6	1.04	7.37	8.72	9.53	7.2
	Csos										2.4		1.91		1.83
M6x1.0	Css	M6	IV (I)	VI (I)	VIII (I)	X (II)	XII (II)	XVI (III)	XX (III)	XXV (III)	2.4	9.9	1.91	9.6	1.83	9	9.89	11.11	9.5

(IV) caeca adscendens foramina potest esse altius quam minimuns, nisi ubi sheet materia est ad seu prope Minimun crassitudine. Fasters semper installed ut LABIUM est rubore cum superficie sheet. (V) Si standoff adhibetur sicut a bushing, foraminis in attachiatus pars non excedat "B" plus .020 "/0.51mm.
